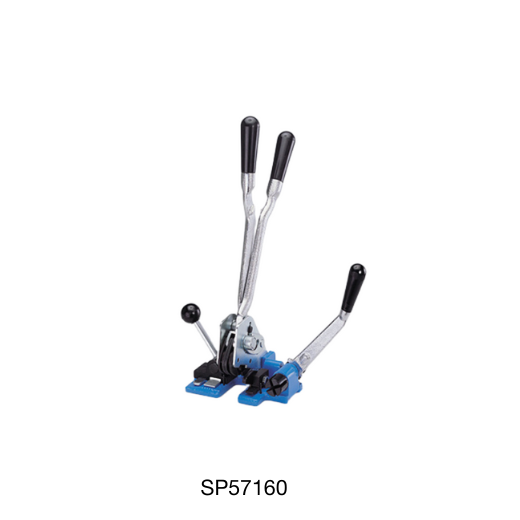

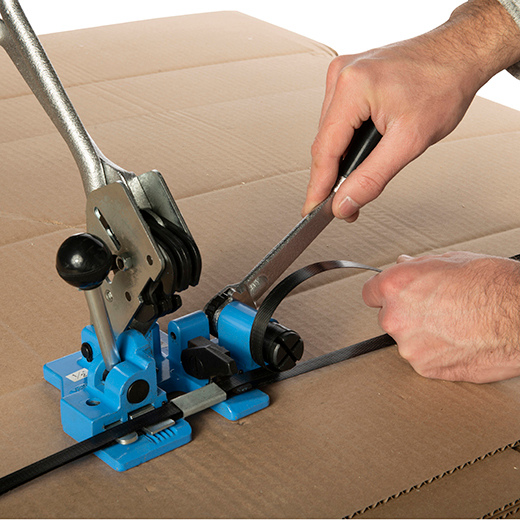

Manual Eco Combo Tool
SP57160, Easy manual operation:

• Wrap the strap around the product, putting it over the top first, then underneath, overlap the strap by a few inches.
• Open the tensioner, secure the lead end of the strap under the pressure foot at the front of the tool, run the lag end of the strapping through the cutter and tensioning wheel at the back of the tool, tension strap as required.
• Insert seal and crimp, securing the strap and also cutting the strap to the appropriate length.

Manual Combo Tool

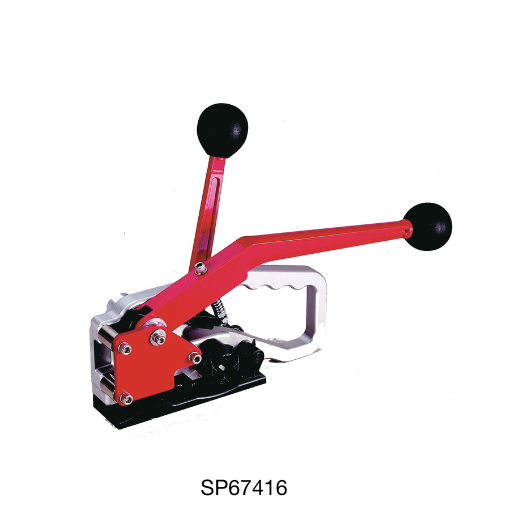

SP67416 Regular Duty Manual Combo Tool, Easy manual operation:

• Wrap the strap around the load, bringing the ends together at the top, ensure the strap overlaps by a few inches. (Lead end on the bottom and end still attached to the coil on the top)
• Place the seal in the slot on the tool.
• Squeeze the combo tool handle and thread the bottom strap (lead end), from the front of the tool, through the seal and then under the cutter and holding gripper, release the handle.
• Thread the top strap (coming from the coil) through the seal, the cutter and the tension wheel. Use the right hand tensioning lever to tension strap as desired.
• To crimp the seal push the sealer handle all the way forward.
• Cut the strap by applying pressure to the handle.
• Twist tool slightly to the right to remove.



Friction-Weld Combo Tools:

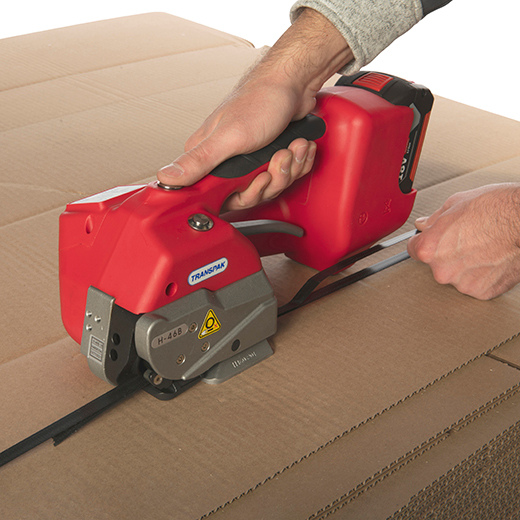

SP84630 / SP84631 Battery powered, high performance, robust tool with flexible settings, easy to use digital operation. Operation modes, tension force and sealing time settings maybe adjusted quickly and easily through the keypad to suit the strap you are using. The digital display also shows the cycle counter and battery power level.
 Manual or automatic modes can be used,  automatic mode allows the tool to tension to the desired level and switch to sealing & cutting mode automatically.

• Wrap the strap around your product, first going over the top and then come back underneath, overlap the strap by a few inches.
• Open the tool by squeezing the handle, line up the strap and thread under the tension wheel cutter and sealer, leave at least 4” of strap in front of the tool. Release handle.
• With the strap loaded ensure your settings are set. For manual mode use the tension button to bring the strap to the required tension. (The tool will beep when this step is complete).
• Next push the sealing button to seal and cut the strap. (If you are using automatic mode the tool will automatically complete this step for you).
  Lift the handle and slide the tool out. (Remember to slide to the side, do not lift straight-up).
  Spare batteries available.

Parts and Service available for all strapping tools and machines.

Remember: Strapping is applied using tension, therefore when removing strapping materials use caution, eye protection is recommended.
