PRODUCT DETAIL:
Polyester strapping tensioners are used with PET strap sealers and seals to complete manual strapping applications, for both flat or irregular shaped product or packages. Available in regular and heavy duty options, ensuring strapping is tensioned with maximum ease and efficiency.
- Parts & Service available. Contact a sales representative for more information.

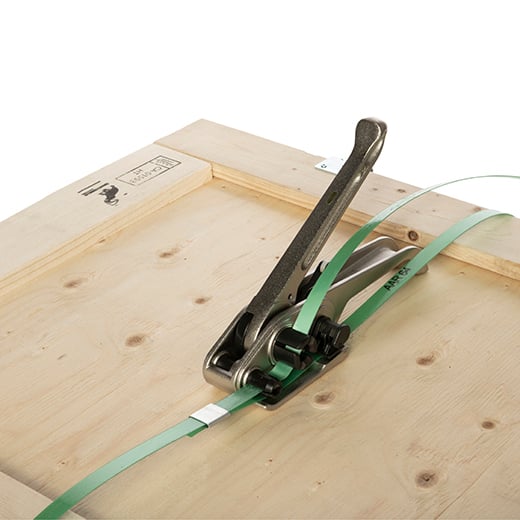

USING A TENSIONER:
How to use tensioners (with cutter) and sealers for Polyester Strapping:
- First: tension your strap:
* Place strap around the item or items to be strapped, bring the two ends together, ensuring an overlap of approximately six inches.
* Squeeze the tensioner handle to open the tool's holding gripper and thread the free end of the strap from the front to the back end of the tool, through the holding gripper, release pressure on the handle.
*Next take the strap coming from the coil, thread it through the cutter and tension wheel, lift handle back & forth until strap reaches desired tension.
- Second: seal your strap:
*Place seal in front of the tensioner on overlapped, tensioned strapping.
*Open sealer, place on seal, crimp the seal by closing the sealer completely to form a secure seal.
- Third: cut the excess strap:
*Simply cut off the excess piece of strap by pushing the tensioner handle in downward motion.
*Twist the tool to the right to remove.
Remember: Strapping is applied using tension, therefore when removing strapping materials use caution, eye protection is recommended.
POLYESTER STRAPPING TENSIONERS SPECIFICATIONS TABLE:
PRODUCT | DESCRIPTION | USE WITH | UNIT |
---|---|---|---|

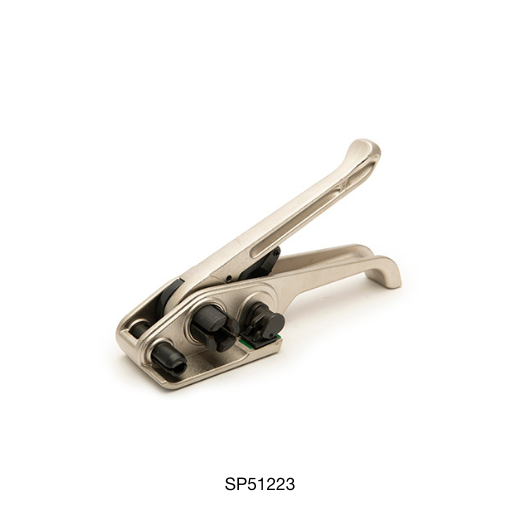

SP51223 |
Heavy Duty Tensioner |
1/2"-3/4" PET Strap |
1 |

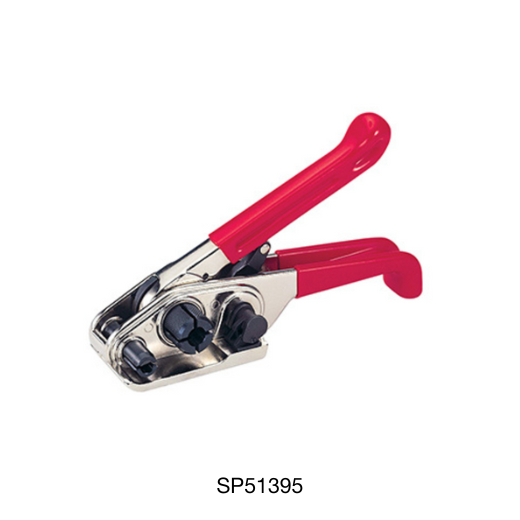

SP51395 |
Heavy Duty Zinc Coated Tensioner |
1/2"-3/4" PET Strap |
1 |

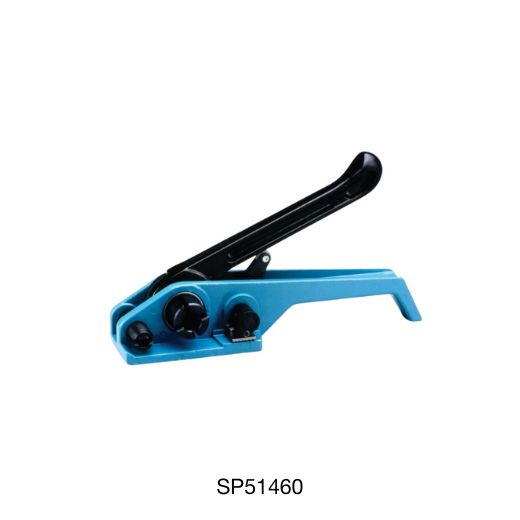

SP51460 |
Large Heavy Duty Tensioner |
1/2"-1-1/4" PET Strap |
1 |
RELATED ITEMS
Product description and specifications content is accurate and true to the best of SmartShield Packaging's knowledge.
Style, colour or size in some pictures may not depict product exactly.
