CASE SEALER

3M-Matic Side Belt Adjustable Case Sealer 8000a, offering an efficient sealing capacity of up to 40 cases per minute. Carton sealing tape machines are designed to provide manufacturers and distributors packaging flexibility and speed, with less tape wastage and a faster, more consistent tape application.

M129 - Product - Accordion

PRODUCT DETAIL:

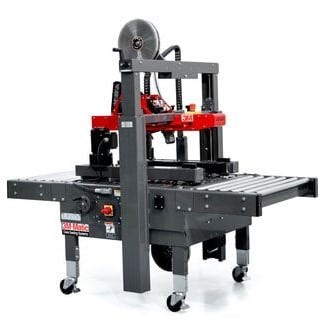

3M-Matic Side Belt Adjustable Case Sealer 8000a

Standard features include:
  • Long lasting durable steel frame with powder coat paint finish.
  • Adjustable settings to ensure consistent application without damage to carton.
  • Efficient productivity with sealing capacity of up to 40 same-sized cases per minute.
  • Interchangeable 2 inch and 3 inch taping heads.
  • Side mounted height adjustment handle and reference ruler for smooth incremental adjustments.
  • Maximum capacity box sizes:
    Length; 6” – unlimited
    Width; 4.5” – 21.5”
    Height;  3.75” to 27.25” (Low column and upper assembly position)
                   4.25” to 28.25” (Standard column and upper assembly position)
                   13.375” to 36.75” (High column and upper assembly position)
  • Spring loaded side belt drive and upper drive assembly.
  • Top flap compression rollers.
  • Centrally located rollers
  • Optional extra features include:
    * Infeed and exit conveyors
    * Box hold down attachment
    * 3-flap folder
    * Low tape indicator

Machine Service and repair available.
Contact us via our online chat or call us toll free at 1-800-224-2109

130 - Specifications Table

PACKING TAPE MACHINE SPECIFICATIONS TABLE:

Product description and specifications content is accurate and true to the best of SmartShield Packaging's knowledge.
Style, colour or size in some pictures may not depict product exactly.
